July 10, 2025·7 min read

Caching Drizzle Queries with Upstash Redis

Cahid Arda OzSoftware Engineer @Upstash

A while ago, we had the opportunity to collab with Drizzle ORM.

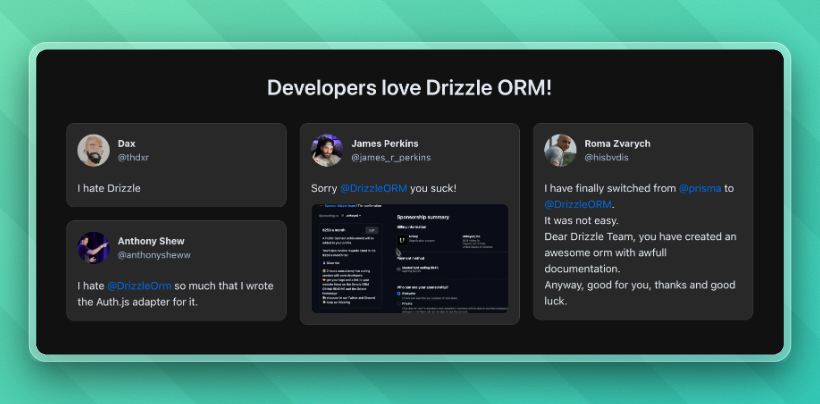

Seeing how this TypeScript ORM is absolutely loved by the community, our decision to say "yes 😳" was a no-brainer:

In this article, we'll see how our Upstash Redis x Drizzle caching integration improves SQL performance, and how we used Lua scripts and hash data structure to optimize the integration.

The Challenge: SQL Performance in Modern Applications

Traditional SQL databases are great at consistency and modeling complex relationships, but they can struggle with:

High latency in distributed environments
Connection pooling limitations in serverless functions
Repetitive query overhead for frequently accessed data
Scaling bottlenecks under heavy read loads

The solution? A caching layer that understands your data relationships and automatically manages cache invalidation.

How the Upstash x Drizzle Caching Works

Improving Read Performance: Cache-First with Fallback

When you execute a query with Drizzle caching enabled, our integration first checks Redis for a cached result:

Cache Miss: If not found, the query reads from your database. The result is stored in Redis with metadata about dependent tables
Cache Hit: Subsequent identical queries return instantly from Redis without having to read from the relational database

// This query checks Redis first and only reads from the database if needed
const users = await db.select().from(usersTable)
  .where(eq(usersTable.status, 'active'))
  .$withCache();

Smart Invalidation for Write Operations

The magic happens during write operations. When you modify data in your relational database, our integration automatically:

Identifies Dependencies: Determines which cached queries depend on the modified tables
Batch Invalidation: Removes all affected cache entries

// This insert automatically invalidates all cached queries that depend on usersTable
await db.insert(usersTable).values({
  email: 'new@user.com',
  status: 'active'
});

Building a Simple Cache: The "Naive" Approach

Let's start with the simplest possible implementation to understand the problems our caching integration solves. When caching a query result, we need to:

Store the cached value
Track which tables this query depends on for invalidation

Simple Cache Storage

// When adding an item to the cache
await redis.set(itemHash, cachedValue);
await Promise.all(
  dependentTables.map((table) => redis.sadd(table, itemHash))
);

This approach stores the cached result as a key-value pair and tracks dependencies by adding the item hash to sets named after each dependent table.

Simple Cache Invalidation

// When invalidating based on table changes
const hashesToInvalidate = await redis.sunion(dependentTables);
await redis.del(...hashesToInvalidate);

This works by finding all cached items that depend on the modified tables, then deleting them.

The Problems with this "Naive" Approach

While it technically works, this naive implementation has two performance issues.

Problem 1: Multiple Round Trips

The invalidation process requires two separate Redis operations:

First, we call SUNION to get the list of keys to delete
Then, we call DEL with the result from step 1

This creates a round-trip dependency where the second operation must wait for the first to complete.

Problem 2: Slow Mass Deletion

The DEL command can become a bottleneck when invalidating many keys:

// This could potentially delete thousands of keys
await redis.del(...hashesToInvalidate);

When you have a popular table like users that's referenced by hundreds of cached queries, a single update could trigger the deletion of hundreds of individual Redis keys. With hundreds or thousands of keys, this can potentially become too slow.

Solution 1: Lua Scripts

Upstash Redis has full support for Lua script evaluation.

Lua scripts solve the round-trip problem by executing multiple Redis commands on the server side:

-- Invalidation script that combines SUNION and DEL
local tables = KEYS  -- table names passed as keys
local keysToDelete = {}

if #tables > 0 then
  -- Get all hashes that depend on these tables
  local hashesToInvalidate = redis.call('SUNION', unpack(tables))

  -- Prepare for deletion
  for _, hash in ipairs(hashesToInvalidate) do
    keysToDelete[#keysToDelete + 1] = hash
  end

  -- Add table sets themselves to deletion list
  for _, table in ipairs(tables) do
    keysToDelete[#keysToDelete + 1] = table
  end

  -- Single atomic deletion
  if #keysToDelete > 0 then
    redis.call('DEL', unpack(keysToDelete))
  end
end

Benefits of Lua scripts:

Single round trip: All operations happen server-side
Reduced latency: No network overhead between operations
Consistency: No risk of partial updates due to network issues

Solution 2: Hash-Based Storage for Efficient Deletion

Even with Lua scripts, deleting hundreds of individual keys may be slower than we would like. Redis hashes provide a much more efficient solution:

The Hash-Based Approach

Instead of storing each cached query as a separate Redis key, we group queries depending on the same tables into hashes:

// Old approach: Each query gets its own key
await redis.set('query_hash_1', result1);
await redis.set('query_hash_2', result2);
await redis.set('query_hash_3', result3);

// New approach: Group queries by table dependencies
const compositeKey = 'users,posts'; // hash key for users and posts tables
await redis.hset(compositeKey, {
  'query_hash_1': result1,
  'query_hash_2': result2,
  'query_hash_3': result3
});

Why Hashes Are Much Faster

When invalidating queries that depend on the users table:

// Old way: Delete many individual keys (slow)
await redis.del('query_hash_1', 'query_hash_2', /* ...hundreds more... */);

// New way: Delete entire hash table (fast)
await redis.del('__CT__users,posts');

Performance advantages:

Single deletion operation: One DEL command removes hundreds of cached queries
Memory efficiency: Redis can free entire hash tables in one operation
Atomic cleanup: All related queries are invalidated together

To see what the Lua scripts look like in the end, you can check the implementation in the Drizzle repository.

Advanced Techniques: Tags and Auto-Invalidation

Cache Tags for Granular Control

Beyond table-based invalidation, Drizzle supports custom tags for fine-grained cache control:

// Cache with a custom tag
const premiumUsers = await db.select().from(usersTable)
  .where(eq(usersTable.plan, 'premium'))
  .$withCache({ tag: 'premium_users' });

// Later, invalidate just this specific query
await db.$cache?.invalidate({ tags: 'premium_users' });

Auto vs Manual Invalidation

Automatic Invalidation (default): Queries are invalidated when dependent tables change, ensuring data consistency but with more aggressive cache clearing.

Manual Invalidation: For scenarios where eventual consistency is acceptable, you can disable auto-invalidation and manually control when to clear the cache:

// Won't be automatically invalidated - good for analytics data
const monthlyStats = await db.select()
  .from(analyticsTable)
  .$withCache({ autoInvalidate: false });

// Manually invalidate when needed (e.g., daily batch job)
await db.$cache?.invalidate({ tables: ['analyticsTable'] });

Real-World Use Cases

Now that we've covered the technical side of the integration, let's see how these concepts translate into practical applications.

E-commerce Product Catalog

// Cache product listings with automatic invalidation
const products = await db.select()
  .from(productsTable)
  .where(eq(productsTable.active, true))
  .$withCache({ tag: 'active_products' });

// When inventory changes, cache is automatically invalidated
await db.update(productsTable)
  .set({ stock: newStock })
  .where(eq(productsTable.id, productId));

Content Management

// Cache published articles with manual invalidation
const articles = await db.select()
  .from(articlesTable)
  .where(eq(articlesTable.status, 'published'))
  .$withCache({
    autoInvalidate: false,
    tag: 'published_articles'
  });

// Manually invalidate when content is updated
await db.$cache?.invalidate({ tags: 'published_articles' });

Conclusion

The Upstash Redis & Drizzle caching integration can drastically improve SQL query performance and reduce database load with (pretty) minimal code changes.

When you enable the cache, you can expect:

Dramatically faster query response times for cached data
Reduced database load and improved scalability

Upstash Redis's global distribution and serverless-first architecture with pay-as-you-go pricing are a great foundation for modern applications.

Perfect for e-commerce platforms, analytics dashboards, content management systems and more.
