Features

​

Caching

For extreme load or denial of service attacks, it might be too expensive to call redis for every incoming request, just to find out it should be blocked because they have exceeded the limit.

You can use an ephemeral in memory cache by passing some variable of type Map<string, number> as the ephemeralCache option:

const cache = new Map(); // must be outside of your serverless function handler

// ...

const ratelimit = new Ratelimit({
  // ...
  ephemeralCache: cache,
});

By default, ephemeralCache will be initialized with new Map() if no value is provided as the ephemeralCache parameter. To disable the cache, one must pass ephemeralCache: false.

If enabled, the ratelimiter will keep track of the blocked identifiers and their reset timestamps. When a request is received with some identifier ip1 before the reset time of ip1, the request will be denied without having to call Redis. reason field of the limit response will be cacheBlock

In serverless environments this is only possible if you create the cache or ratelimiter instance outside of your handler function. While the function is still hot, the ratelimiter can block requests without having to request data from Redis, thus saving time and money.

See the section on how caching impacts the cost in the costs page.

​

Timeout

You can define an optional timeout in milliseconds, after which the request will be allowed to pass regardless of what the current limit is. This can be useful if you don’t want network issues to cause your application to reject requests.

const ratelimit = new Ratelimit({
  redis: Redis.fromEnv(),
  limiter: Ratelimit.slidingWindow(10, "10 s"),
  timeout: 1000, // 1 second
  analytics: true,
});

Default value of the timeout is 5 seconds if no timeout is provided. When response is success because of a timeout, this is shown in the reason field of the limit method.

​

Analytics & Dashboard

Another feature of the rate limiting algorithm is to collect analytics.

Bu default, analytics is disabled. To enable analytics, simply set the analytics parameter to true:

const ratelimit = new Ratelimit({
  redis,
  analytics: true,
  limiter: Ratelimit.slidingWindow(60, "10s"),
})

Everytime we call ratelimit.limit(), analytics will be sent to the Redis database (see costs page) and information about the hour, identifier and the number of rate limit success and failiures will be collected. This information can be viewed from the Upstash console.

If you are using rate limiting in Cloudflare Workers, Vercel Edge or a similar environment, you need to make sure that the analytics request is delivered correctly to the Redis. Otherwise, you may observe lower numbers than the actual number of calls.

To make sure that the request completes, you can use the pending field returned by the limit method. See the Asynchronous synchronization between databases section to see how pending can be used.

​

Dashboard

If the analytics is enabled, you can find information about how many requests were made with which identifiers and how many of the requests were blocked from the Rate Limit dashboard in Upstash Console.

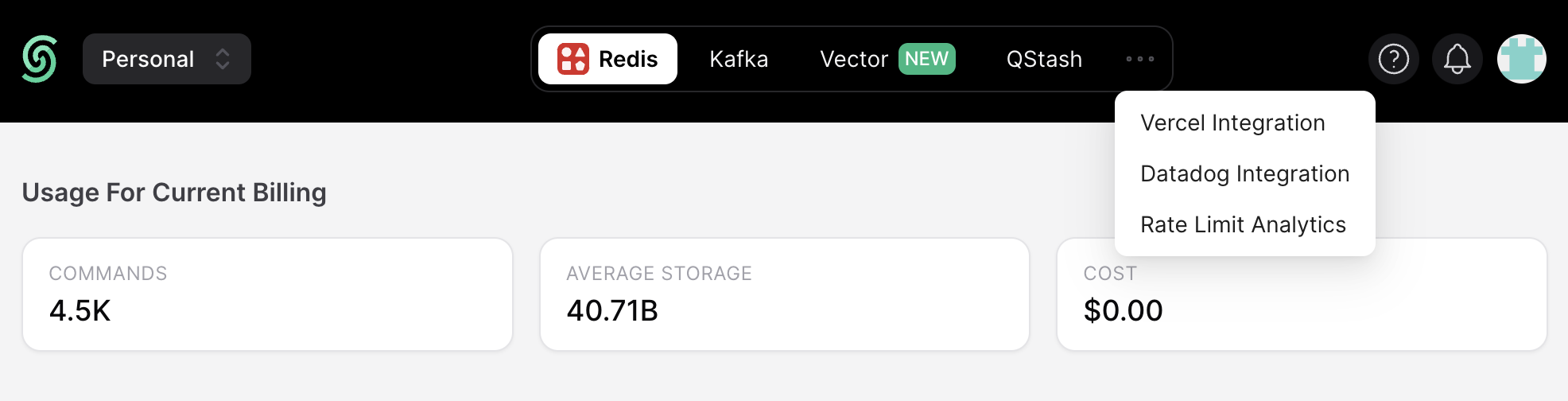

To find to the dashboard, simply click the three dots and choose the “Rate Limit Analytics” tab:

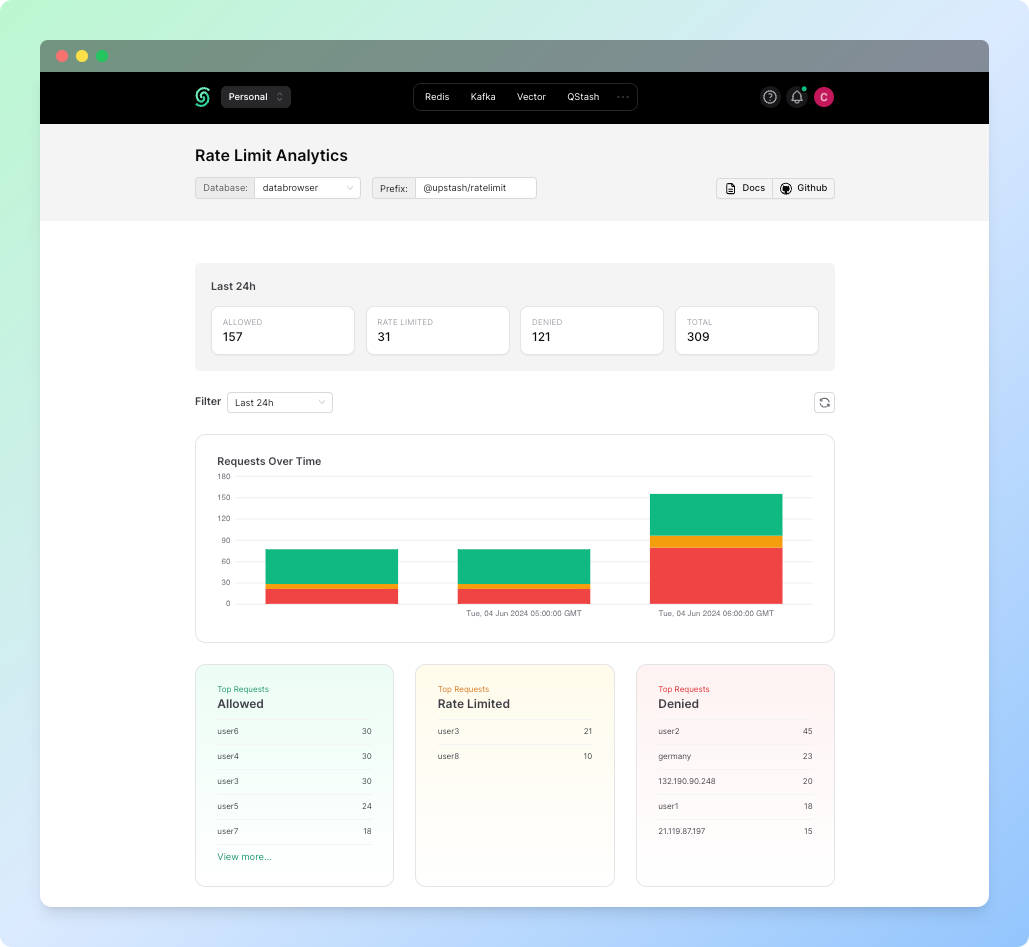

In the dashboard, you can find information on how many requests were accepted, how many were blocked and how many were received in total. Additionally, you can see requests over time; top allowed, rate limited and denied requests.

Allowed requests show the identifiers of the requests which succeded. Rate limited requests show the identifiers of the which were blocked because they surpassed the limit. Denied requests show the identifier, user agent, country or the ip address which caused the request to fail.

If you are using a custom prefix, you need to use the same in the dashboard’s top left corner.

​

Using Multiple Limits

Sometimes you might want to apply different limits to different users. For example you might want to allow 10 requests per 10 seconds for free users, but 60 requests per 10 seconds for paid users.

Here’s how you could do that:

import { Redis } from "@upstash/redis";
import { Ratelimit } from "@upstash/ratelimit";

const redis = Redis.fromEnv();

const ratelimit = {
  free: new Ratelimit({
    redis,
    analytics: true,
    prefix: "ratelimit:free",
    limiter: Ratelimit.slidingWindow(10, "10s"),
  }),
  paid: new Ratelimit({
    redis,
    analytics: true,
    prefix: "ratelimit:paid",
    limiter: Ratelimit.slidingWindow(60, "10s"),
  }),
};

await ratelimit.free.limit(ip);
// or for a paid user you might have an email or userId available:
await ratelimit.paid.limit(userId);

​

Custom Rates

When we call limit, it subtracts 1 from the number of calls/tokens available in the timeframe by default. But there are use cases where we may want to subtract different numbers depending on the request.

Consider a case where we receive some input from the user either alone or in batches. If we want to rate limit based on the number of inputs the user can send, we need a way of specifying what value to subtract.

This is possible thanks to the rate parameter. Simply call the limit method like the following:

const { success } = await ratelimit.limit("identifier", { rate: batchSize });

This way, the algorithm will subtract batchSize instead of 1.

​

Multi Region

Let’s assume you have customers in the US and Europe. In this case you can create 2 seperate global redis databases on Upstash (one with its primary in US and the other in Europe) and your users will enjoy the latency of whichever db is closest to them.

Using a single Redis instance with replicas in different regions can not offer the same performance as MultiRegionRatelimit because all write commands have to go through the primary, increasing latency in other regions.

Using a single redis instance has the downside of providing low latencies only to the part of your userbase closest to the deployed db. That’s why we also built MultiRegionRatelimit which replicates the state across multiple redis databases as well as offering lower latencies to more of your users.

MultiRegionRatelimit does this by checking the current limit in the closest db and returning immediately. Only afterwards will the state be asynchronously replicated to the other databases leveraging CRDTs. Due to the nature of distributed systems, there is no way to guarantee the set ratelimit is not exceeded by a small margin. This is the tradeoff for reduced global latency.

​

Usage

The api is the same, except for asking for multiple redis instances:

import { MultiRegionRatelimit } from "@upstash/ratelimit"; // for deno: see above
import { Redis } from "@upstash/redis";

// Create a new ratelimiter, that allows 10 requests per 10 seconds
const ratelimit = new MultiRegionRatelimit({
  redis: [
    new Redis({
      /* auth */
    }),
    new Redis({
      /* auth */
    }),
    new Redis({
      /* auth */
    }),
  ],
  limiter: MultiRegionRatelimit.slidingWindow(10, "10 s"),
  analytics: true,
});

// Use a constant string to limit all requests with a single ratelimit
// Or use a userID, apiKey or ip address for individual limits.
const identifier = "api";
const { success } = await ratelimit.limit(identifier);

​

Asynchronous synchronization between databases

The MultiRegion setup will do some synchronization between databases after returning the current limit. This can lead to problems on Cloudflare Workers and therefore Vercel Edge functions, because dangling promises must be taken care of:

const { pending } = await ratelimit.limit("id")
context.waitUntil(pending)

See more information on context.waitUntil at Cloudflare and Vercel. You can also utilize waitUntil from Vercel Functions API.
